Embedded modules for imaging, computing and transportation applications

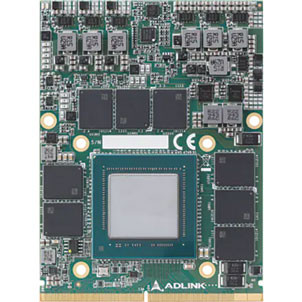

Mouser now stocks the new NVIDIA RTX embedded MXM modules from ADLINK Technology. These modules' superior graphics performance, GPU computing, and video capabilities deliver a new level of performance for visual graphics, medical imaging, digital signage, computing, defence, transportation, and aerospace applications.

The modules feature embedded graphics powered by the NVIDIA Ampere architecture. They provide up to 16GB GDDR6 memory on a 256-bit bus and a maximum memory bandwidth of 512GB/s to deliver high-speed data transfer in a suite of modules for customised performance across multiple applications.

The EGX-MXM-A1000 and EGX-MXM-A2000 provide a 2560 CUDA core NVIDIA Ampere GPU that can support up to four FHD displays, delivering leading-edge GPU performance for embedded system operations in mission-critical harsh environments with an extended temperature range from -20C to 70C. The EGX-MXM-A500 combines the latest leading-edge 2048 CUDA core NVIDIA Ampere GPU with 16 RT Cores, 64 Tensor Cores, up to 4GB GDDR6 memory @ 64-bit and 6.54 TFLOPS Peak FP32 performance, with versatile display options and efficient power consumption.

The EGX-MXM-A4500 is provided with the latest 5888 CUDA core NVIDIA Ampere GPU and additional third-generation 184 Tensor Cores, using the 7nm chip process for structural sparsity and improved AI performance in embedded, ruggedised, or mobile system designs. With its PCIe Gen4 x 16 throughputs, the EGXMXM-A4500 can also support four FHD displays.
